Index
- General use & setup
- Payments
- Transactions & reports
General use & setup
Login

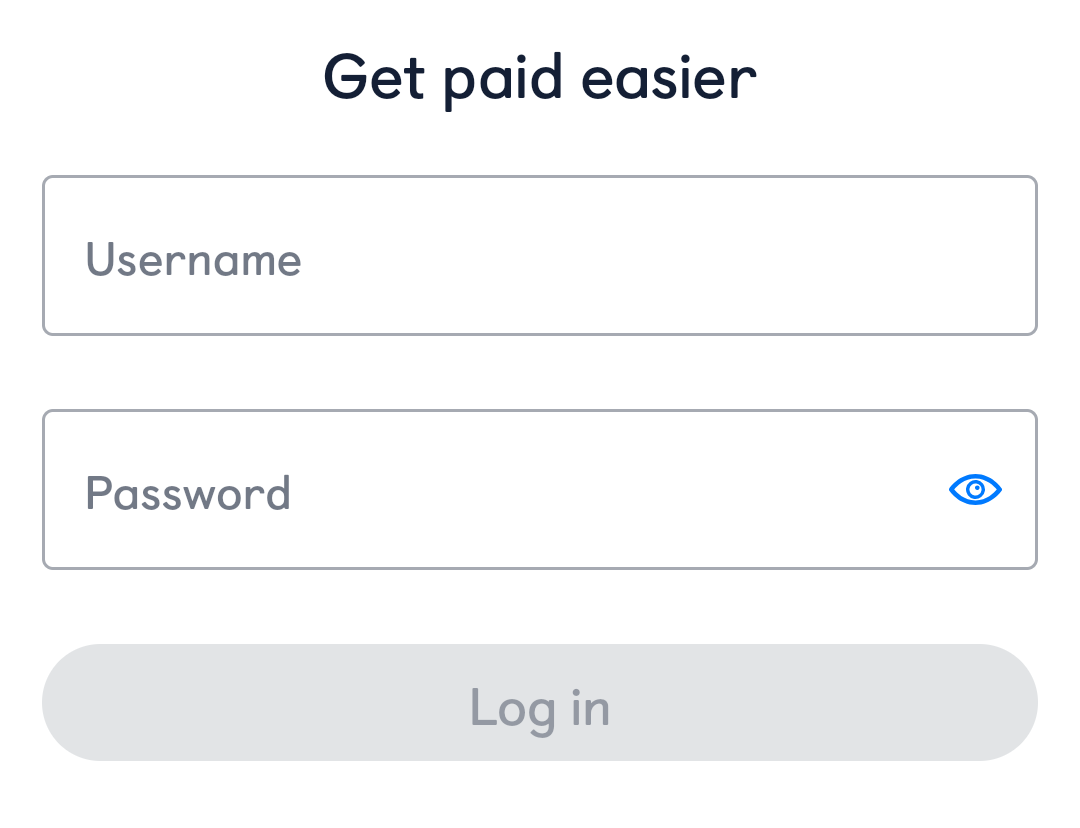

Enter your username and password and tap “Log in“ button

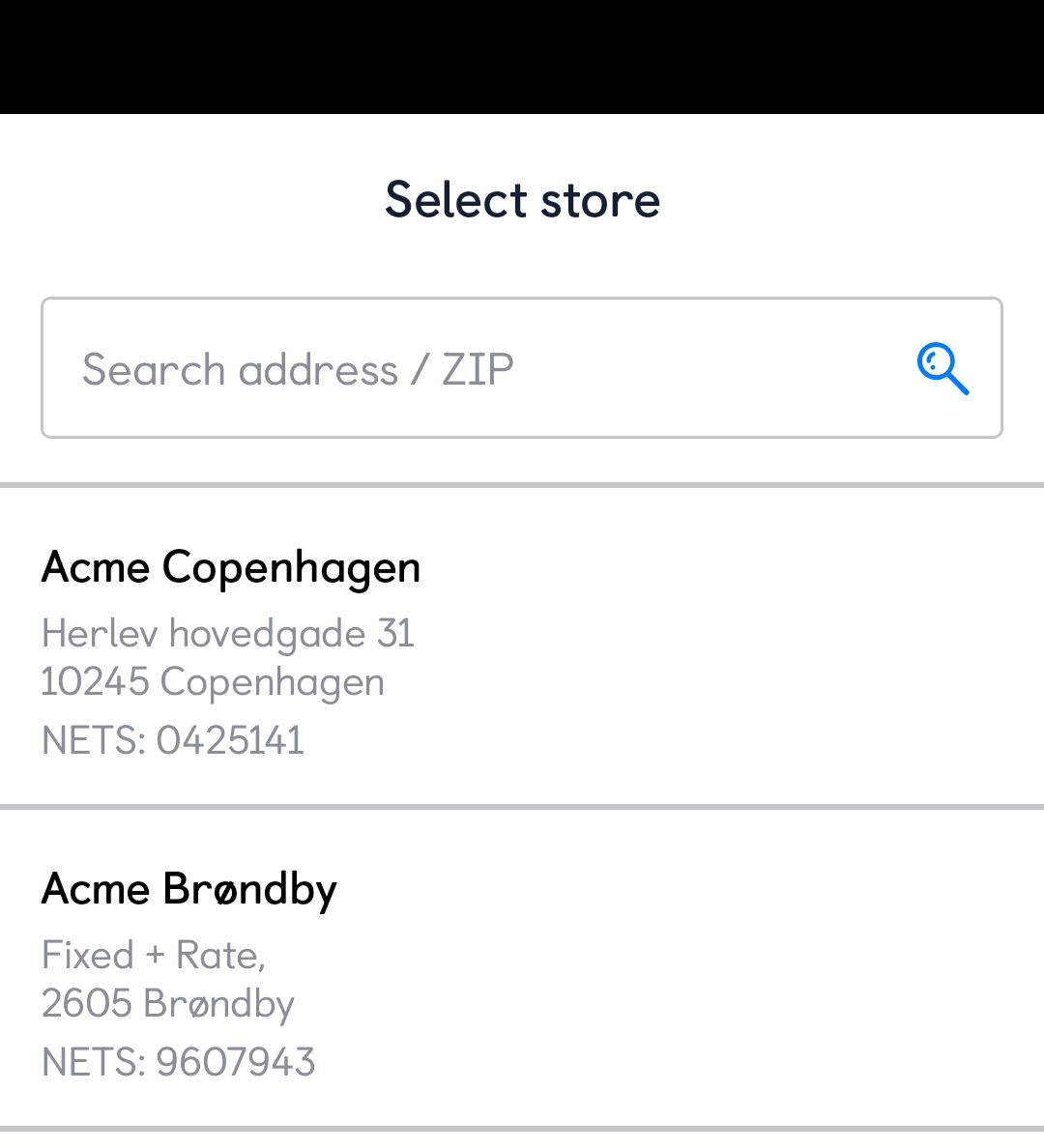

Select the store you wish to use on this terminal (can be changed later on)

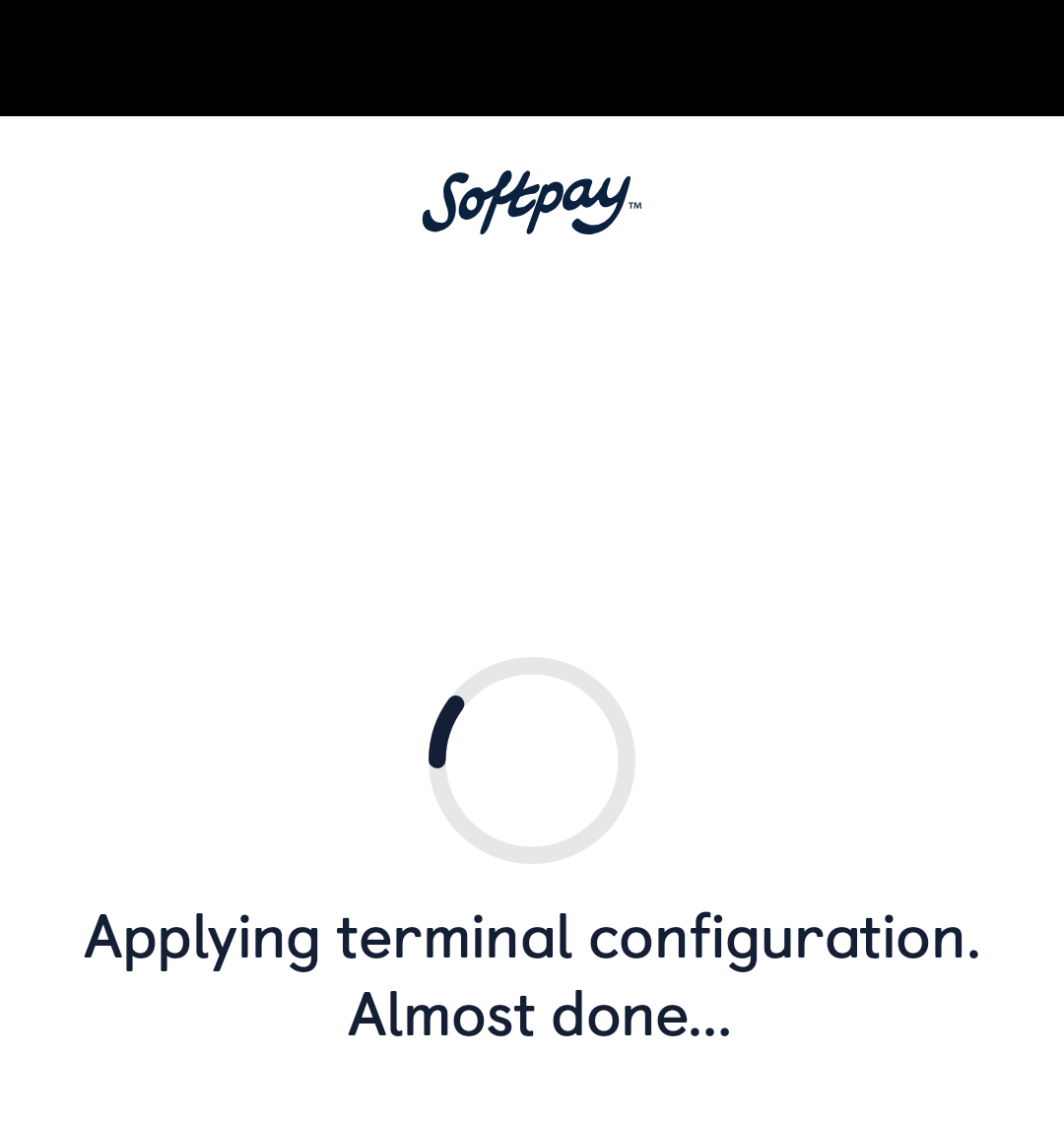

Wait for the store to be connected
Start using the app
Change app language

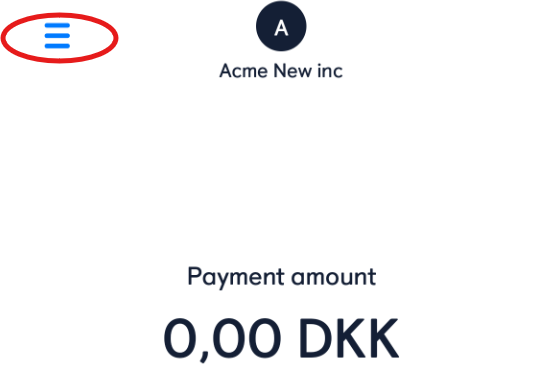

Open the drawer menu by clicking on an icon in the top-left corner
-

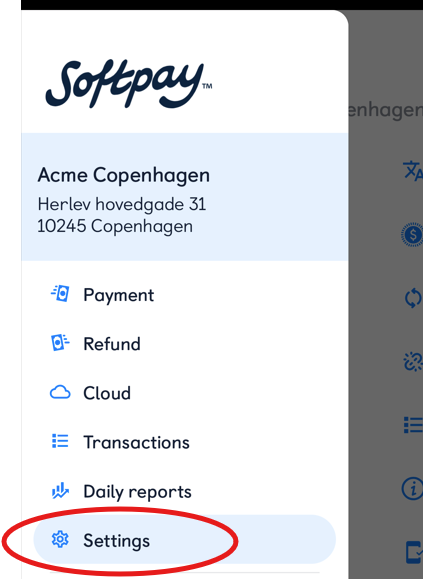

Select the “Settings“ option in the menu

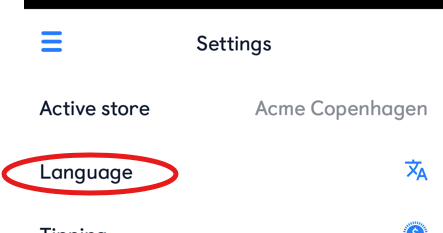

Select the “Language“ option from the list

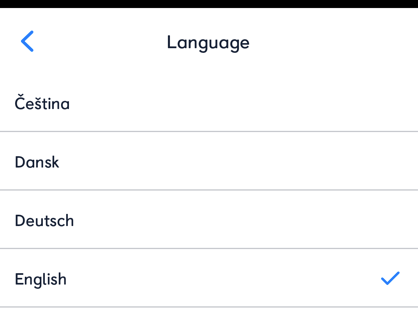

Choose a language you want to use
Setup or change store
Open the drawer menu by clicking on an icon in the top-left corner
Select the “Settings“ option in the menu

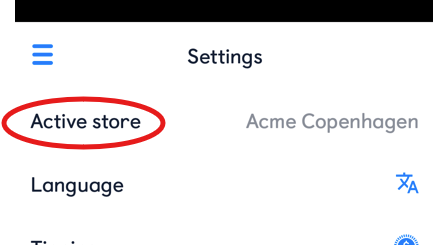

Select the “Active store“ option from the list

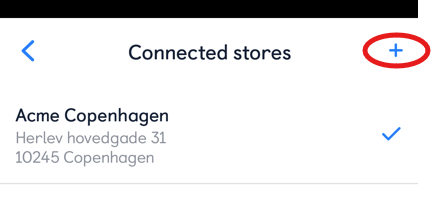

Tap on the “+“ icon in the top right corner

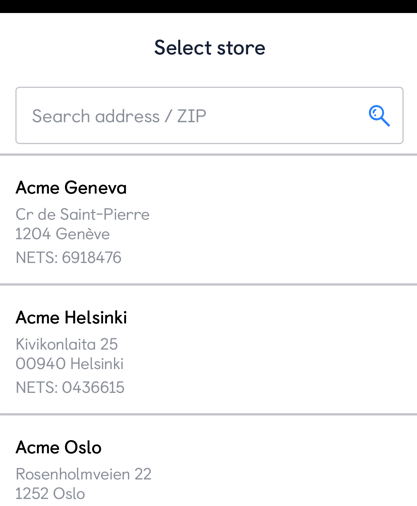

Choose a store you want to use

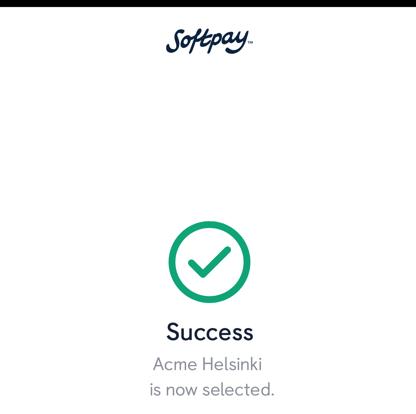

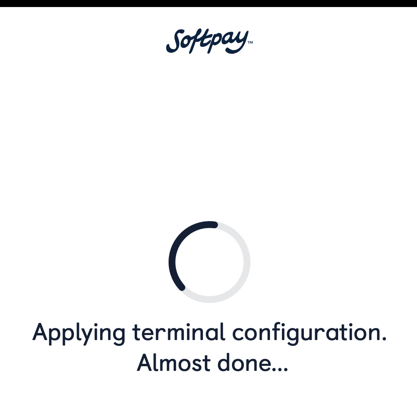

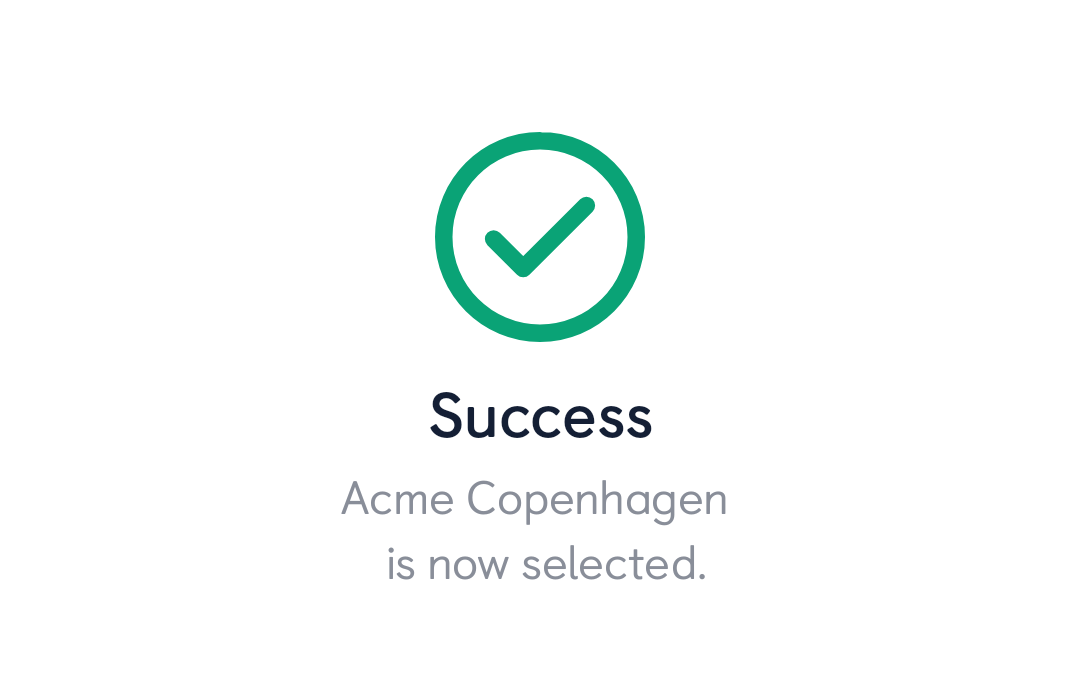

Wait for the store to be connected
Continue using the app with the changed store
View terminal information
Open the drawer menu by clicking on an icon in the top-left corner
Select the “Settings“ option in the menu

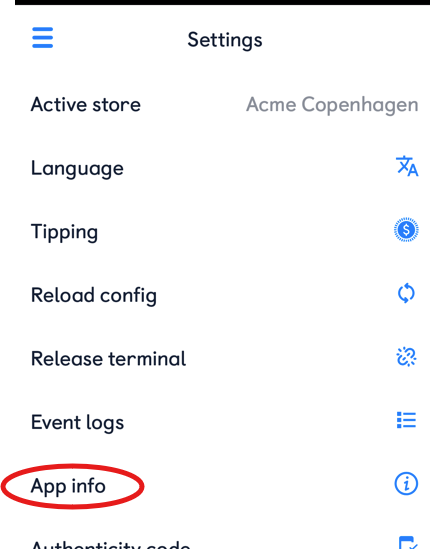

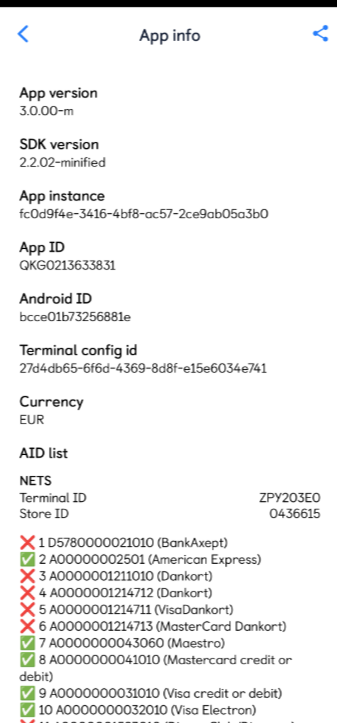

Select the “App info“ option from the list
4. Browse terminal information
Reload configuration
Open the drawer menu by clicking on an icon in the top-left corner
Select the “Settings“ option in the menu

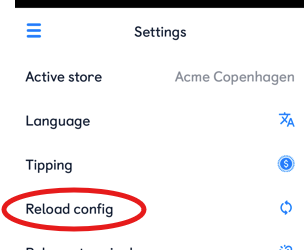

Select the “Reload config“ option from the list
You’ll be prompted with the dialog. To continue, tap “Continue“, otherwise, tap “Close“
Release Terminal
Releasing a terminal will release any terminal IDs which has been connected to the current app installed on a device. For example this should be used when a device needs to be replaced, as this will make the terminal ID provided by the acquirer available to use on a new installation.
Note: This is not needed if the only payment processor used is Nets.
Open the drawer menu by clicking on an icon in the top-left corner
Select the “Settings“ option in the menu

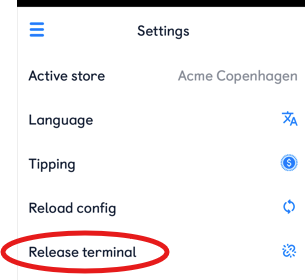

Select the “Release Terminal“ option from the list

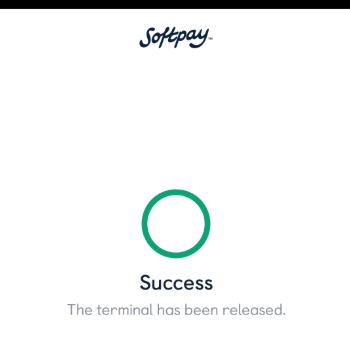

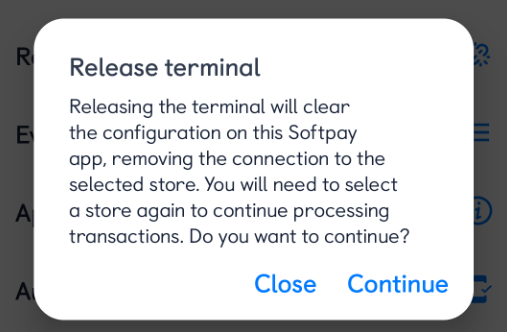

Select "Continue" to approve the release and receive confirmation
Payments
Perform a purchase

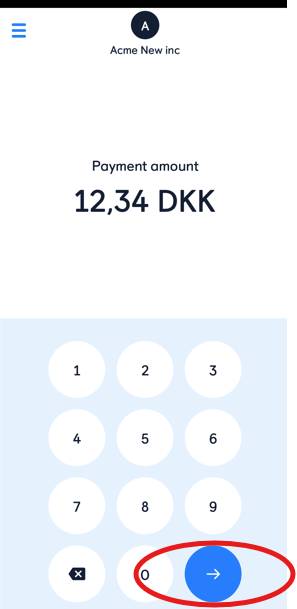

Enter the purchase amount using the keyboard and tap the button with the “→“ icon.

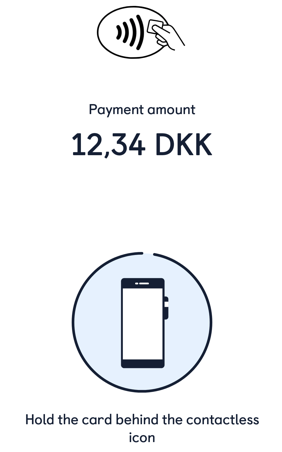

Instruct the cardholder to tap their payment card as per UI instructions
For larger amounts, a PIN screen will be presented. Cardholder needs to enter their PIN code and tap a button with the “→“ icon to proceed.

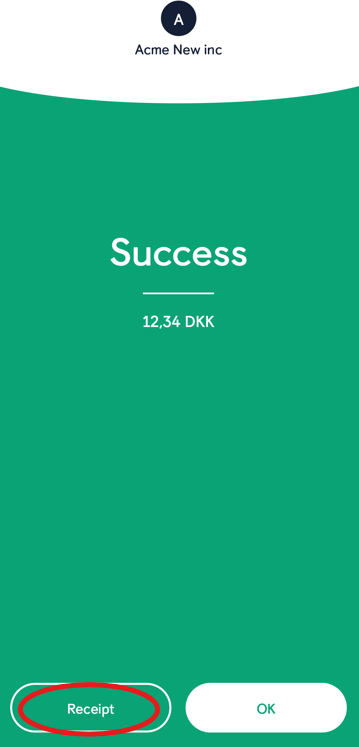

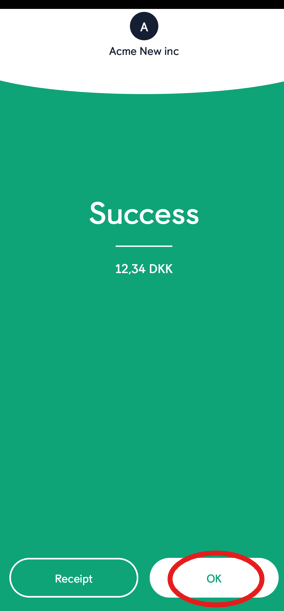

The app shows a result screen.
-

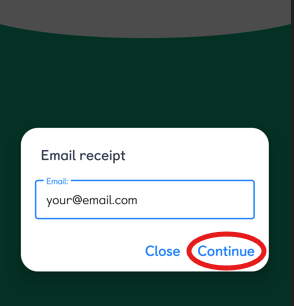

The cardholder can choose to receive the receipt via email by clicking on a “Receipt“ button
Perform a refund
Open the drawer menu by clicking on an icon in the top-left corner
Select the “Refund“ option in the menu
Enter the refund amount using the keyboard and tap the button with the “→“ icon.

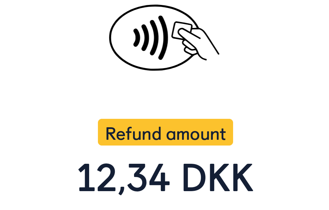

Instruct the cardholder to tap their payment card as per UI instructions
The app shows a result screen.
-
The cardholder can choose to receive the receipt via email by clicking on a “Receipt“ button
Using co-branded cards

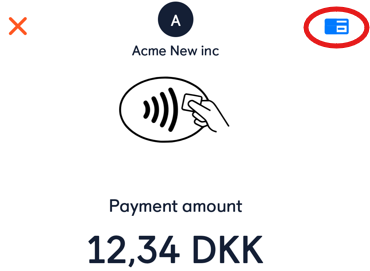

On the “Tap card“ screen, tap the icon in the top right corner
Instruct the cardholder to tap the card

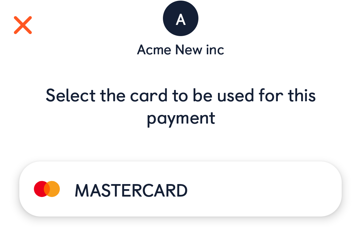

The UI updates and shows available cards that can be used for this transaction and cardholders need to select one of them
The cardholder taps the same card again
- Transaction proceeds as usual (see Perform a purchase)
Transactions & reports
See your past transactions
Open the drawer menu by clicking on an icon in the top-left corner
Select the “Transactions“ option in the menu
View your transactions from the past 10 days in this list

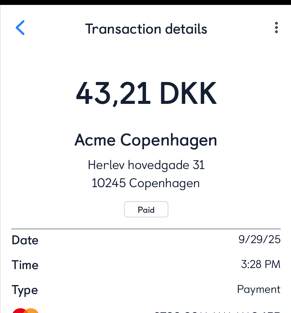

If you wish to see a single transaction, tap on it in the list
Cancel a transaction
Only the last transaction processed not more than 15 minutes ago can be canceled.
Open the drawer menu by clicking on an icon in the top-left corner
Select the “Transactions“ option in the menu
Select the transaction you wish to cancel from the list
Tap the “Cancel transaction“ button
Confirm cancelation
Daily reports
Open the drawer menu by clicking on an icon in the top-left corner
Select the “Daily reports“ option in the menu

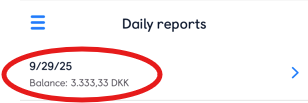

See the reports from the past 10 days in the list

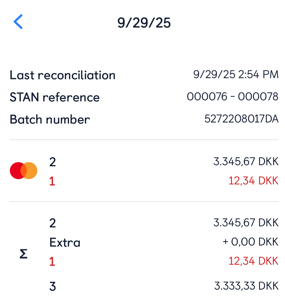

Select the report you wish to see from the list
